Standard Spreader Bracket Install: 3m Awning, 2.5m Projection

Install summary for a 3 m × 2.5 m patio awning on render: Standard Spreader Brackets, 250 kg product rating, and on-site feedback from customer and fitter.

The LoadBear Team3 min read

A successful install of our Standard Spreader Bracket — supporting a 3 m wide, 2.5 m projection aluminium awning on a rendered patio elevation. Customer and fitter both said these are the best brackets they have seen and used.

Install summary

Awning 3 m wide × 2.5 m projection, aluminium cassette over a south-facing patio
Wall Rendered elevation (masonry behind the finish)
Brackets LoadBear Standard Spreader Brackets — stainless, made in Birmingham
Why this bracket 2.5 m projection sits in the Standard Spreader band on our projection guide
Product load rating 250 kg (in-house pull test) — see load test results
Fixings Chemical (resin) anchors into sound masonry — see how to fix an awning to the wall for M10/M12 guidance by wall type
Finish Flat-to-wall concealed fixings behind the cover — no visible screws on the finished bracket

Cassette brand, cassette weight, exact bracket centres, stud size on this job, and install duration were not recorded for this write-up. If you have the job card, send it through and we will add those lines.

“Best brackets we’ve seen and used.”

— Customer and installing fitter, speaking on site

3m wide aluminium awning with 2.5m projection installed on a rendered wall using LoadBear Standard Spreader Brackets

3 m × 2.5 m awning fully extended over the patio — Standard Spreader mounts carrying the cassette on the rendered wall.

Why a spreader on this wall

At 2.5 m projection, a direct top-fix starts asking a lot of a small cluster of anchors — especially on a rendered elevation where the visible finish is not the structural leaf. A spreader plate moves the load into a wider fixing pattern in sound masonry, which is the same logic we set out in why awning fixings pull out.

That is the job this install was bought for: a full patio cassette at the top of the Standard Spreader range, fitted so the wall takes the load properly and the finished elevation stays tidy.

Built-in reinforcement, real-world load

The Standard Spreader is engineered with built-in reinforcement and has been load tested to over 250 kg — well in excess of what a typical 3 m × 2.5 m cassette will ask of it in normal use. That headroom is what gives fitters confidence and customers a system that should still be solid years later.

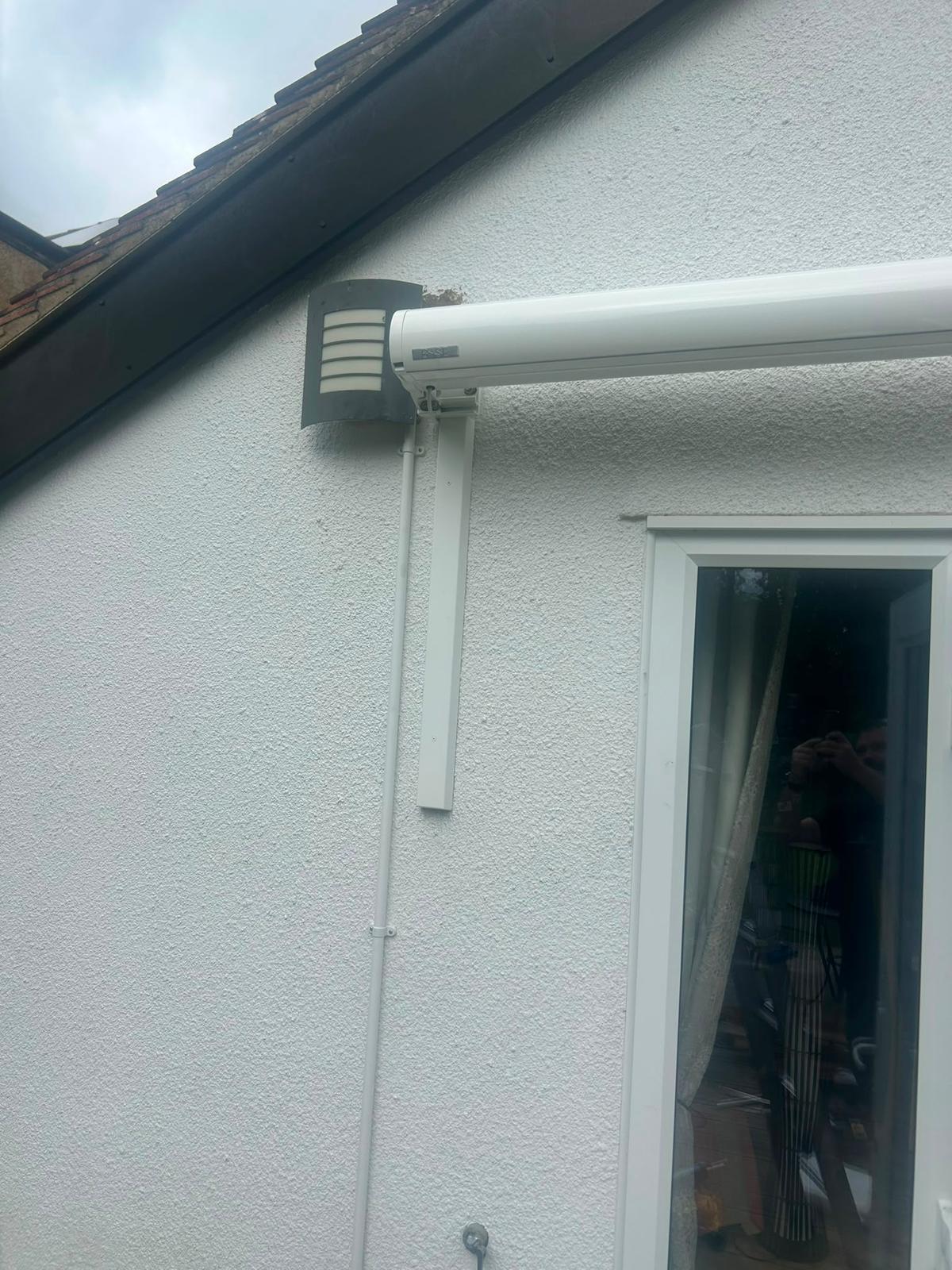

Close-up of LoadBear Standard Spreader Bracket mounted to a rendered wall supporting an awning arm

Clean fix to the wall — discreet, rigid, and ready for British weather.

Specifying a similar job

If you are specifying brackets for a similar size awning on render, brick or block:

  1. Confirm width, projection and wall type (and cassette model if you have it).
  2. Match duty with choosing the right bracket by projection — Standard for ~2.5 m; step up for longer projections or exposed sites.
  3. Plan chemical anchors into masonry, not plugs into mortar — fixing overview.
  4. Order made-to-measure A/B/C dimensions from the Standard Spreader product page, or apply for trade if you fit regularly.

The Standard Spreader remains the most affordable LoadBear bracket that can comfortably handle a 3 m × 2.5 m system without dropping the structural detail we build into every set.
